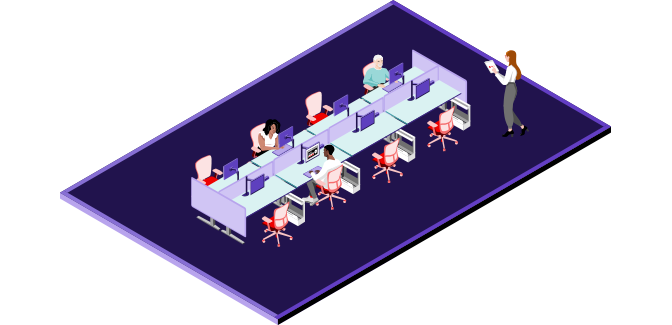

Workstation - assigned

• Primary: Wall connection junction boxes
• Secondary: Floor cores. All wires, cores, and cables to be concealed within a desk or with a wire management system.
• Tertiary: Power poles only if building does not allow floor cores or existing raceways cannot be reused

• Primary: Wall connection junction boxes
• Secondary: Floor cores. All wires, cores, and cables to be concealed within a desk or with a wire management system.
• Tertiary: Power poles only if building does not allow floor cores or existing raceways cannot be reused

D2  |  30″ D x 60″ L or 800 x 1600 mm free standing height adjustable desk

• Front desk-mounted (to move with the desk) or trough-mounted fixed privacy panel.
  • Minimum height is 15″ H or 381 mm from desk surface (top at 45″ or 1143 mm above floor)
  • Maximum height is 18" or 457 mm from desk surface (top at 48" or 1220 mm above floor)
• Side desk-mounted privacy panel to move with desk. Finish can be fabric or writable surface. It is preferred for workstation divider (side) panels to not require drilling in order to attach to the desktop. Clamp-mounted screens that are movable without tools are preferred.
• Modesty panel to be included under desk if visual privacy not provided by panel system
• Bag hook
• Spine to include:
  • 2 x data (furniture vendor to confirm placement is accessible by user and not blocked by furniture)
  • Accessible placement of data jacks (confirm, with furniture vendor)
  • Power/data to be included in spine to support appropriate PG1 at each workstation and height-adjustable base
• PG1  |  Clamp-mounted desktop power unit (offset from center)
  • 4 x Power receptacles
  • 2 x USB
  • 2 x open pass throughs
  • Height adjustable cable management

ST-1 a lockable mobile storage pedestal with cushion top

• Width not to exceed 18" or 457mm, depth not to exceed 30" or 800mm

• Hanging files to be included in storage unit
