Phone room

The items listed below are integrated into the architecture of the space. This information complements additional details listed on both the Workplace technology and Furniture and fixtures tabs.

• Refer to the Color and finishes page for additional information.

• All walls to go to deck with sound attenuation, acoustical ceiling tile ceilings with a minimum sound absorption of .75 and carpet flooring.
• Consider including acoustical wall panels and a white noise system.
• Consider acoustics in the placement of these rooms. Buffer them from main circulation with appropriate sound-proofing.

To achieve desired lighting lux levels and color temperature, please follow these guidelines:

• 500 minimum lux levels

• 3000 – 4000K recommended CCT Values (Color Correlated Temperature).

NOTE: The illuminance of lamps affects the color appearance and should be taken into consideration when planning CCT Values.

Branding and signage

• Use secondary or neutral workplace color palette.
• Use privacy film on glass.
• Include Wayfinding where required in.
• Signage indicating space type, use, and etiquette to be located within each room.


Other

• During Test Fits, consider that the size of this space type should both meet ADA or local accessibility regulations and have an efficient footprint.

Data and power

Please refer to the data and power specifications in the Design and Furniture and fixtures tabs.

Installation specification

Connectivity

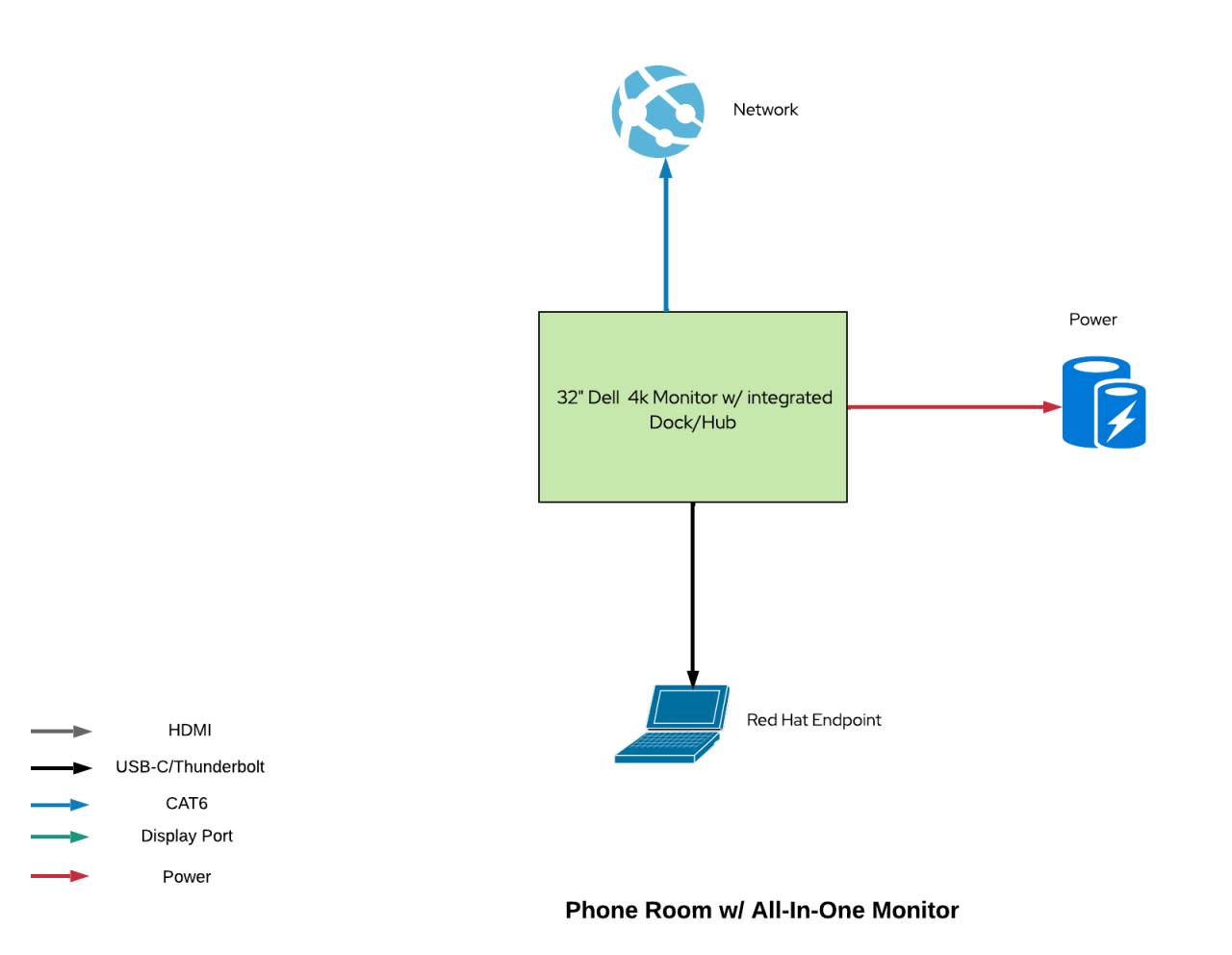

• A single USB-C presentation cable will be presented at the table top surface providing a consistent user experience for audio visual and network connectivity + power.


Telephony

• There is NOT to be any IT supported telephony hardware provided for this space.


Consideration

• Ensure that any/all cable(s) are not pinched or damaged in the operation of the height-adjustable table.
• All power, network and AV cables MUST be managed through the monitor stand’s cable management system where applicable.
• If this equipment is not available in your region, please contact the AV Service Owner for suggestions.
• Network cables are to be secured using Panduit RJ-45 locks.
• For the theft prevention purposes, we must secure AV presentation cables using zips ties to the monitor arm(s).

The items listed below are integrated into the furniture. This information complements additional details listed on both the Workplace Technology and Design tabs.

• Height-adjustable desk cable standards (Option 1 only)

• AV port patching matrix

• Configuration Guide for 32” All-In-One Monitor w/ Integrated dock/hub (authenciation required)
