Enclave D

Last updated May 29, 2025

A small space for 1 on 1 in-person collaboration.

Capacity: 1–2
Purpose: Connect
Target size: 70–90 sq ft / 8 sq m

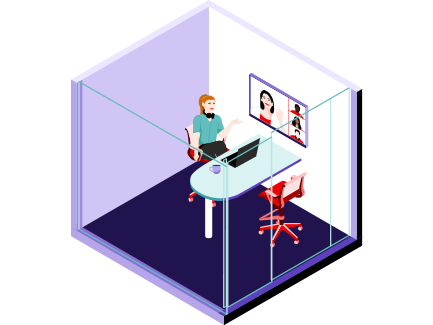

3D illustration of Enclave D space type
Design Workplace technology Furniture and fixtures Signage and wayfinding Resource links

Design

Description and context

  • Inviting, bright, and comfortable
  • Easy for associates to find and use
  • Access to natural light
  • Distribute each of the enclave options equally throughout the Neighborhood
  • Appropriate and consistent technology to be in all rooms to promote easy collaboration
  • To promote collaboration between team members through space and technology. These spaces are not for individual use.
  • Non-reservable and accessed on a first-come, first-serve basis
Encave D floorplan
img-enclave-c-anana-1

Design guidelines and standards

The items listed below are integrated into the architecture of the space. This information complements additional details listed on both the Workplace technology and Furniture and fixtures tabs.


Finishes


Acoustics

  • All walls to go to deck with sound attenuation, acoustical ceiling tile ceilings with a minimum sound absorption of .75 and carpet flooring.
  • Consider including acoustical wall panels and a white noise system.

Lighting

To achieve desired lighting lux levels and color temperature, please follow these guidelines:

  • 400-550 lux levels on faces
  • 3000-4000K recommended CCT Values (Color Correlated Temperature).
  • In spaces with videoconferencing, use indirect, diffused, and evenly distributed lighting. Room lighting should be completely even across the field of view of the camera.

NOTE: The illuminance of lamps affects the color appearance and should be taken into consideration when planning CCT Values.

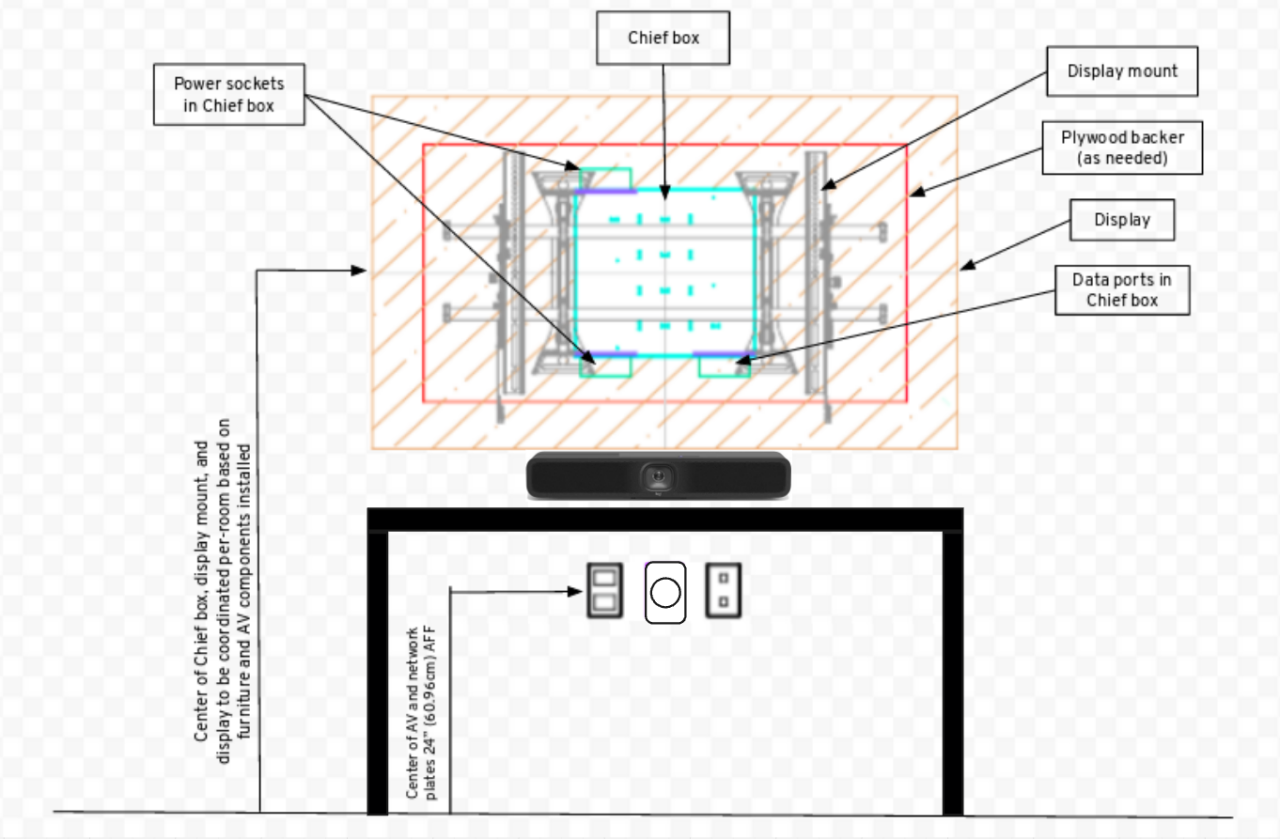

Mechanical, electrical and plumbing

QTYTypeLocationDescription
4(IT)PowerBehind displayDisplay, VC,  2 spares
4(GWS)PowerOn wall below the table heightOnly recommendation for users (to be decided by GWS)
3(IT)DataBehind displayDisplay, VC, spare
  • For furniture power specification please refer to the Furniture and fixtures tab.
  • Power for AV equipment only - all power circuits in AV rooms should be "always on".  There should not be an ability to turn these circuits off using any normal light switch. Coordinate with GWS to ensure this configuration.

Specialty

Branding and signage

  • Include wayfinding signage where required in core facilities.
  • This space should have glass walls to allow for associates to easily see if it is occupied or available.
  • Use frosted film on glass.


Other

  • During Test Fits, consider that the size of this space type should both meet ADA or local accessibility regulations and have an efficient footprint.
