Interview room

The items listed below are integrated into the architecture of the space. This information complements additional details listed on both the Workplace technology and Furniture and fixtures tabs.

Refer to the Color and finishes page for additional information.

• All walls to go to deck with sound attenuation, acoustical ceiling tile ceilings with a minimum sound absorption of .75 and carpet flooring.
• Consider including acoustical wall panels and a white noise system.
• Consider acoustics in the placement of these rooms. Buffer them from main circulation with appropriate sound-proofing.

• For furniture power specification please refer to the Furniture and fixtures tab.
• Power for AV equipment only - all power circuits in AV rooms should be "always on".  There should not be an ability to turn these circuits off using any normal light switch. Coordinate with GWS to ensure this configuration.
• Direct run cable installed between the floor core/box and the display wall.

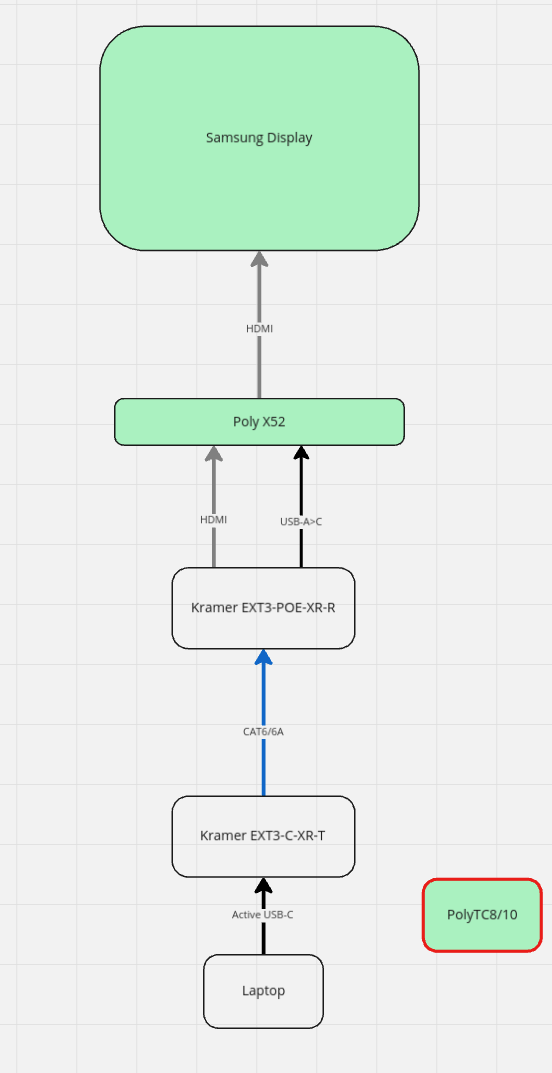

  • HDBT 3.0 signal connecting the Kramer EXT3-C-XR-T (under table) to the Kramer EXT3-POE-XR-R (behind the display) + 1 spare
  • Note: If a direct cable connection isn't possible, refer to the HDBaseT Data Cabling Deployment Options spreadsheet.

Branding and signage

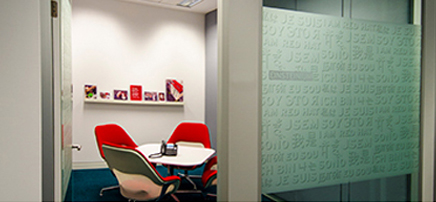

• Include custom privacy interview film for the glass. It celebrates the global nature of our company, and the full height provides maximum privacy for interviews.
• Consider graphics or patterns that help narrate Red Hat’s story and enhance the candidate experience.

The items listed below are integrated into the furniture. This information complements additional details listed on both the Workplace technology and Design tabs.

Hardware list

The hardware products listed below represent our current workplace technology standards and do not imply an endorsement of any specific brand, vendor, or product.

The “Model” column contains the standard device names to be used in all project documentation like the project quotes, inventory, and schematic designs.

Data and power

Please refer to the data and power specifications in the Design and Furniture and fixtures tabs.

Installation specification

• Elevations for all AV components to be determined per-room and validated with Red Hat IT

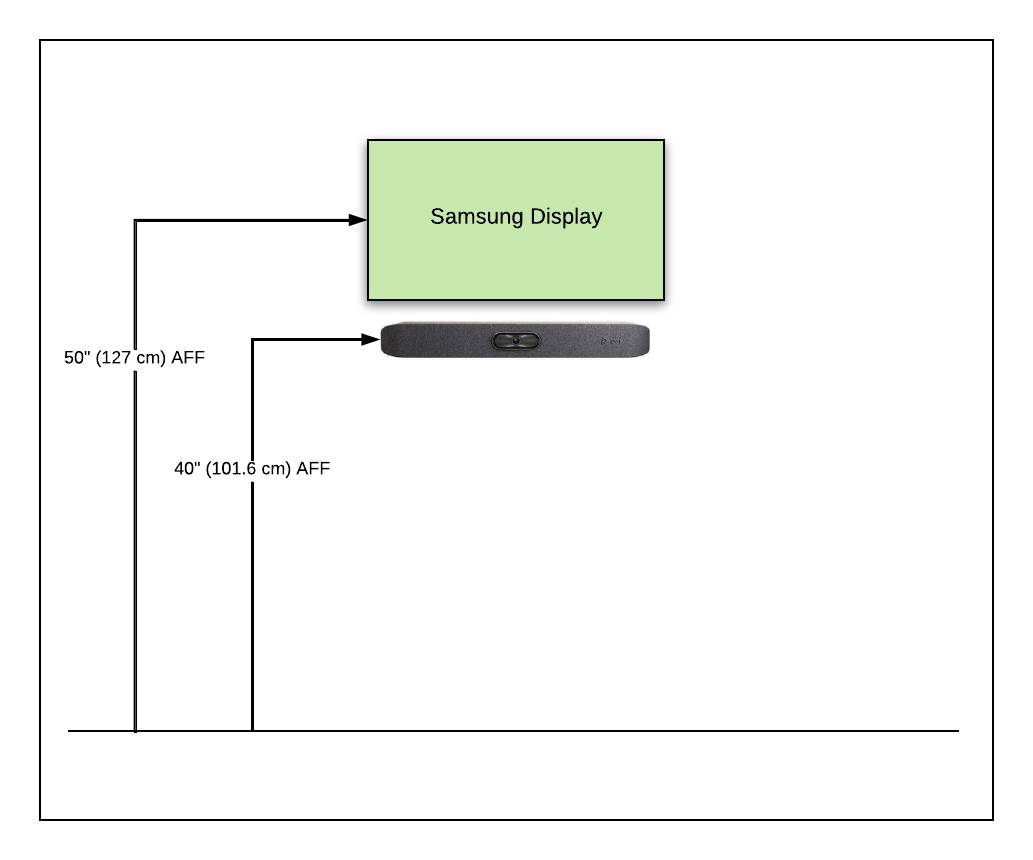

  • Approximate AV elevation heights
    • Center of Chief box: 50” (127cm)
• NOTE: If wall plates are used, mount center of wall plates 6” (15cm) below the published center of the Chief Box to ensure access for support is maintained.
• NOTE: If using the Chief Sliding Panel, center the panel at the published center of the Chief Box. Mount the panel opposite any glass wall, as appropriate, to obscure the view of the panel.
• NOTE: If using Chief Sliding Panel ensure data and power cables are routed properly and allow for the panel to slide completely out for support.

X30 Below the display Wall Mount (Inverted Mount Option - Kit 2215-86512-001)

• AV port patching matrix
• Scheduler panels
• Interview film datasheet
• HDBaseT Data Cabling Deployment Options

• Poly Studio X Configuration Guide (GMNA/Partner Mode) (authentication required)
• Logi MeetUp2 Configuration Guide (authentication required)
• Samsung Display Configuration Guide (authentication required)
• Display Recommended Sizing and Viewing Distances (authentication required)
