Workstation – flex

The items listed below are integrated into the architecture of the space. This information complements additional details listed on both the Workplace technology and Furniture and fixtures tabs.

• Match finishes to workplace brand color palette

• All walls to go to deck with sound attenuation, acoustical ceiling tile ceilings with a minimum sound absorption of .75 and carpet flooring
• Consider including a white noise system

To achieve desired lighting lux levels and color temperature, please follow these guidelines:

• 500 minimum lux levels

• 3000-4000K recommended CCT Values (Color Correlated Temperature).

NOTE: The illuminance of lamps affects the color appearance and should be taken into consideration when planning CCT Values.

• For furniture power specification please refer to the Furniture and fixtures tab.
• Only one port should  be patched to a switch port
• Workstation Power prioritized locations:
  • Primary: Wall connection junction boxes
  • Secondary: Floor cores. All wires, cores, and cables to be concealed within a desk or with a wire management system
  • Tertiary: Power poles only if building does not allow floor cores or existing raceways cannot be reused

Branding and signage

• Use secondary brand palette in office area (avoid red)

• Include signage indicating space type, use, and etiquette to be at each desk


Other

• Define additional team storage requirements by user group
• Centralized Trash receptacles to be incorporated into open workstation area (to accommodate both assigned and mobile)
  • 1 x Trash + 1 x Recycling per 15 people. Please make sure these are incorporated into the test fit
• Back to Back Workstation Dimensions: (from desk edge to desk edge) to be 84″ or 2100mm

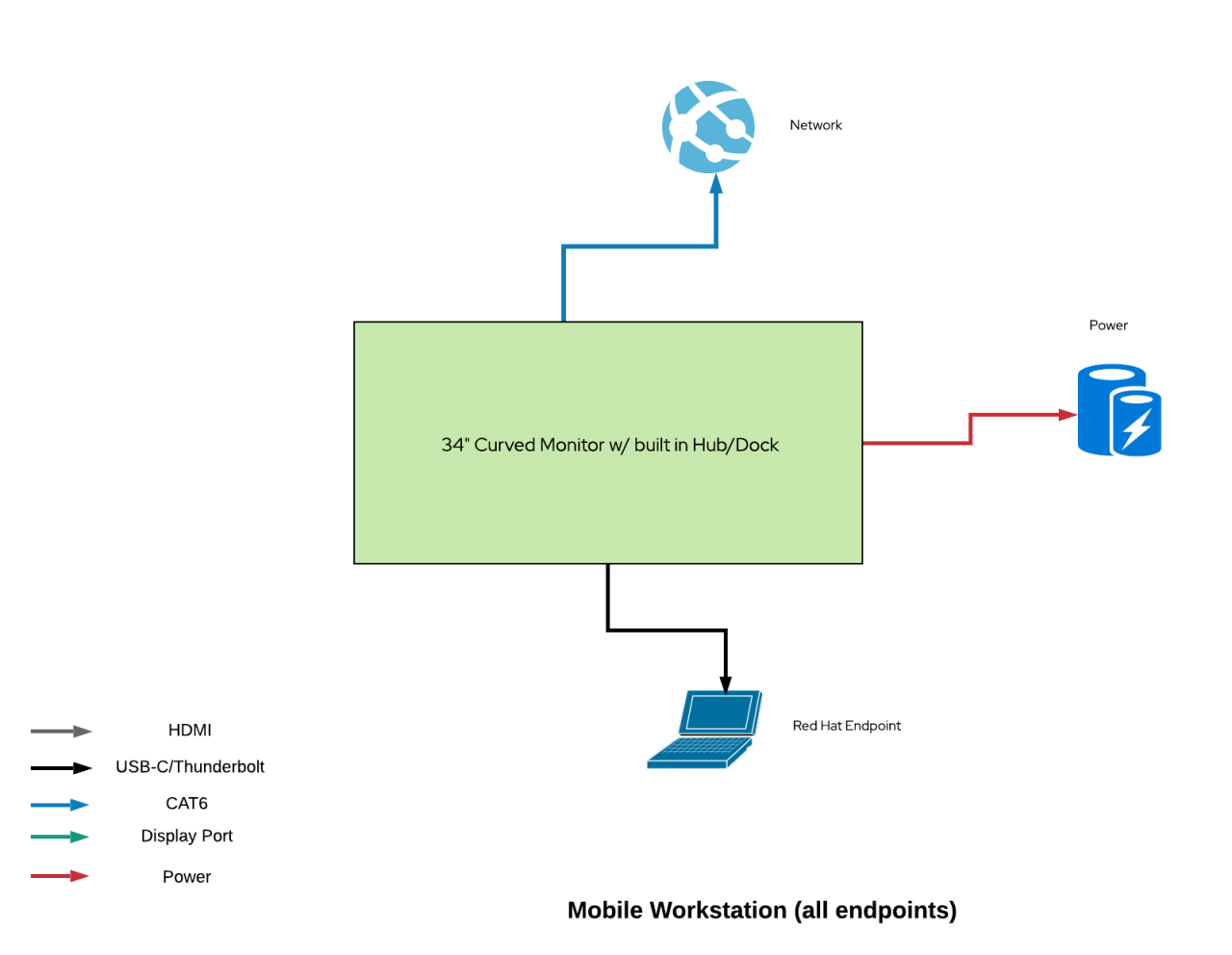

Hardware list

The hardware products listed below represent our current workplace technology standards and do not imply an endorsement of any specific brand, vendor, or product.

(Supports all Red Hat endpoints)

(Supports all Red Hat endpoints)

(Supports all Red Hat endpoints)

Data and power

• Please refer to the data and power specifications in the Design and Furniture and fixtures tabs.
