| Quantity | Make | Model | Description |
|---|---|---|---|
| 1 | Samsung | Current Standard Display (authentication required) | 50”- 55” (127 - 139.7 cm) Samsung Slim Direct-Lit LED Display |
| 1 | Poly | Poly Studio x32 (A3SV5AA#ABA) | Video Bar Collaboration System for Poly Studio X Family |
| 1 | Poly | TC10-Touchscreen (875K5AA) | Touch Controller |
| 1 | Poly | Studio X32 Wall mount (875L6AA) | Poly Studio X30 Optional Mounting Kits, includes one each of the following: Vesa Mounting Kit, and Wall Mounting Kit. Compatible with the Studio X50 below the display Wall mount |
| 1 | Poly | PoE Inline Injector (B5NH6AA) | Poly PoE++ 65W Inline Injector Kit Note: Kit Includes power cord and (1) 3.66m CAT6A cable for Injector LAN/Data input. An additional (1) CAT6A patch cable of appropriate length is required to connect the Injector output to the Poly X32. |
| 1 | Kramer |
Rev version 0304 | 4K60 4:2:0 USB-C Transmitter with USB, RS–232 & IR over Extended–Reach HDBaseT 3.0 |
| 1 | Kramer | EXT3-POE-XR-R | 4K60 4:4:4 Receiver with Bidirectional PoE, USB, Ethernet, RS–232 & IR over Extended–Reach HDBaseT 3.0 |
| 1 | Chief or similar | LTM Series | Large Fusion™ Micro-Adjustable Tilt Wall Mount provides low-profile, fingertip tilt. We can use different wall mount manufacturers and models with similar specs to the Chief wall mount depending on the display size and weight. |
| Note for options below |
| ||
| 1 | Chief | PAC526 | Large In-Wall Storage Box - Back box used behind the display to mount data and power outlets and to house audiovisual equipment. Use this if NOT using wall plates for data/power |
| 1 (Optional) | Chief | CSSMP15X10 | Sliding Component Storage Panel - Optional component to house audiovisual equipment. Use this ONLY if using wall plates for data/power. Recommended for display sizes 55” and above. |
Design

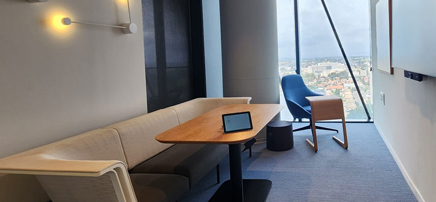

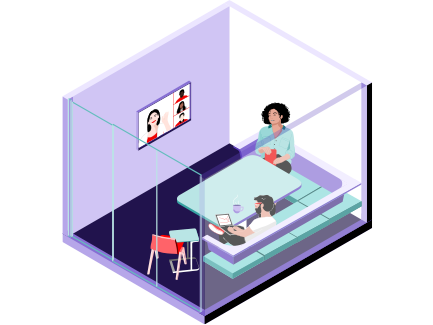

Description and context
- Inviting, bright, and comfortable
- Contemporary furniture
- Easy for associates to find and use
- Access to natural light
- Located in employee-facing areas as part of each Neighborhood
- Distribute each of the enclave options equally throughout Neighborhood
- Appropriate and consistent technology to be in all rooms to promote easy collaboration
- Non reserveable and accessed on a first-come, first-serve basis
Design guidelines and standards
The items listed below are integrated into the architecture of the space. This information complements additional details listed on both the Workplace technology and Furniture and fixtures tabs.
Finishes
Refer to the Color and finishes page for additional information.
Acoustics
- All walls to go to deck with sound attenuation, acoustical ceiling tile ceilings with a minimum sound absorption of .75 and carpet flooring.
- Consider including acoustical wall panels and a white noise system.
Lighting
To achieve desired lighting lux levels and color temperature, please follow these guidelines:
- 500 minimum lux levels
- 3000-4000K recommended CCT Values (Color Correlated Temperature)
- In spaces with videoconferencing, use indirect, diffused, and evenly distributed lighting. Room lighting should be completely even across the field of view of the camera.
NOTE: The illuminance of lamps affects the color appearance and should be taken into consideration when planning CCT Values.
Mechanical, electrical and plumbing
| QTY | Type | Location | Description |
|---|---|---|---|
| 4(IT) | Power | Behind display | Display, PoE Injector (for VC), Kramer EXT3-POE-XR-R, spare |
| 2(IT) | Power | Below table | Kramer EXT3-C-XR-T + 1 spare |
| 2(GWS) | Power | On wall below the table height | Only recommendation for users (to be decided by GWS) |
| 4(IT) | Data | Behind display | Display, VC, 2 spares |
| 2(IT) | Data | Below table | Poly TC8, spare |
| 2(IT) | Data (HDBT) | Direct Run Cable | EXT3-C-XR-T (under table) to the EXT3-POE-XR-R (behind the display) + 1 spare |
- For furniture power specification please refer to the Furniture and fixtures tab.
- Power for AV equipment only - all power circuits in AV rooms should be "always on". There should not be an ability to turn these circuits off using any normal light switch. Coordinate with GWS to ensure this configuration.
- Direct run cable installed between the floor core/box and the display wall.
- HDBT 3.0 signal connecting the Kramer EXT3-C-XR-T (under table) to the Kramer EXT3-POE-XR-R (behind the display) + 1 spare
- Note: If a direct cable connection isn't possible, refer to the HDBaseT Data Cabling Deployment Options spreadsheet.
Specialty
Branding and signage
- Include wayfinding signage where required in core facilities
- Use frosted film on glass
- Include signage indicating space type and room behaviors
Other
- To support enclave-to-office conversion, center mount display on wall diagonal from door entry. See diagram.
Furniture and fixtures
The items listed below are integrated into the furniture. This information complements additional details listed on both the Workplace technology and Design tabs.
Quantity | Description and performance specifications |
|---|---|
| 1 | L2 | L-shaped fully upholstered sofa |
| 1 | T7 | Large powered seated height table at booth, disc base with integrated wire management preferred, size to accommodate all users (table should be fixed for IT purposes) with round edges
|
| 1 | C5 | freestanding guest chair |
| 1 | T3 | large laptop table or side table |
| 1 | Wall-mounted magnetic marker board with marker tray. Consider acoustic requirements of space when placing marker board |
Workplace technology
Hardware list
The hardware products listed below represent our current workplace technology standards and do not imply an endorsement of any specific brand, vendor, or product.
The “Model” column contains the standard device names to be used in all project documentation like the project quotes, inventory, and schematic designs.
Video equipment
Cables
| Quantity | Make | Model | Description |
|---|---|---|---|
| 2 | Kramer | C-HM/HM/PRO | High–Speed HDMI Cable Lengths — 0.9–19.8m (3–65ft) Black. Note: For In-Wall and MDF areas. Not for use in customer-visible spaces. |
| NOTE: Kramer HDMI cables (C-HM/HM/PRO) are preferred for use within standard designs. These cables are to be purchased and used if available. If the Kramer C-HM/HM/PRO HDMI cables ARE NOT available or have long lead times, please ensure that the HDMI cables that are purchased conform with the specifications of premium high speed/high performance cable standards. Preferred cable vendors include Lindy, Liberty or Lightware | |||
| 1(15ft length required) | Kramer | C-U32/MFF (Passive 15 ft.) | USB 3.2 GEN–2 Full Featured USB–C (M) to USB–C (M) Flexible Passive Cable |
| 1 | Tripp Lite | U428-006 | USB-C to USB-A Cable (M/M), USB 3.2 Gen 1 (5 Gbps), Thunderbolt 3 Compatible, 6’ (1.83 m) |
| For all Visible / Accessible Unused Data port in the meeting space | Panduit | PSL-DCJB-IW | Connector Jack Module Blockout Device For RJ45 Jacks NOTE: All the visible and accessible unused data ports in the meeting space should be blocked by this adapter. Please make sure to keep 2-3 removal tools at each site for support. |
NOTE: The lengths and number of HDMI and AV cables is to be determined by the integrator per-project.
Data and power
Please refer to the data and power specifications in the Design and Furniture and fixtures tabs.

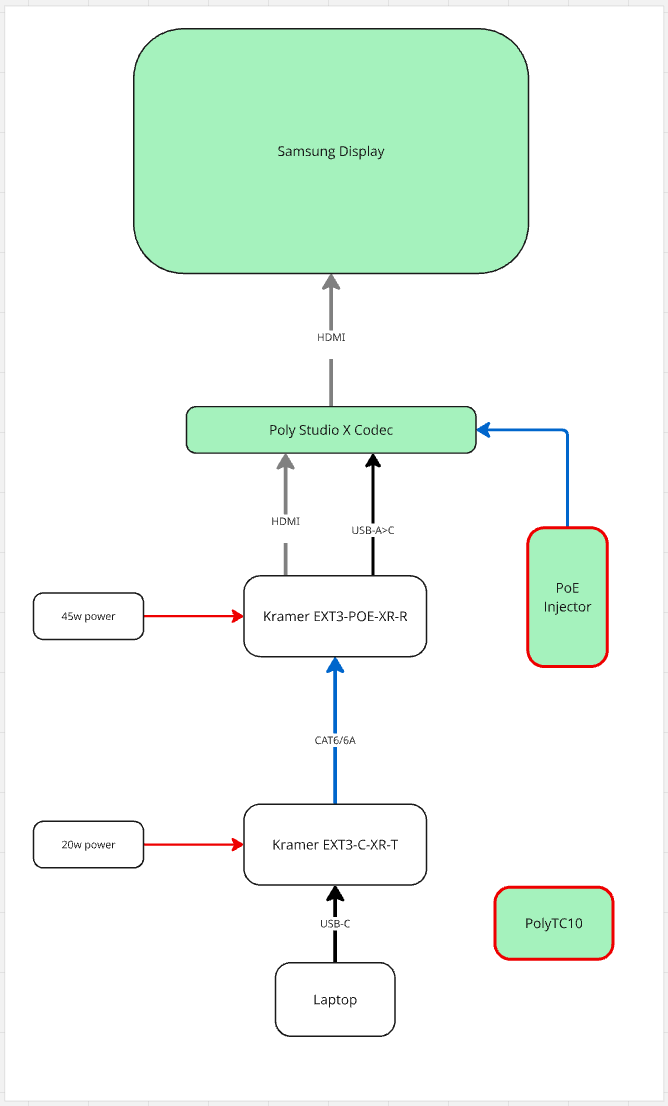

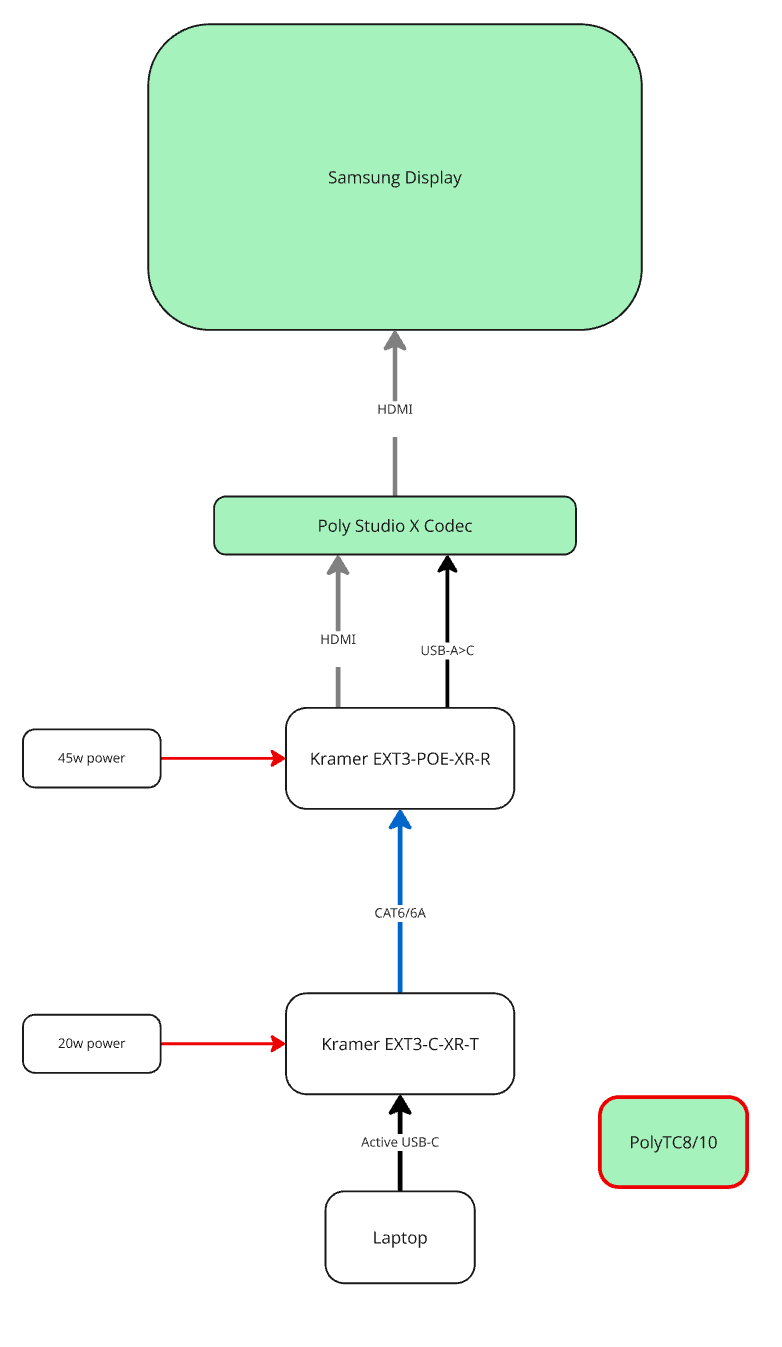

Technology design drawing
Installation specification
- Elevations for all other AV components to be determined per-room and validated with Red Hat IT

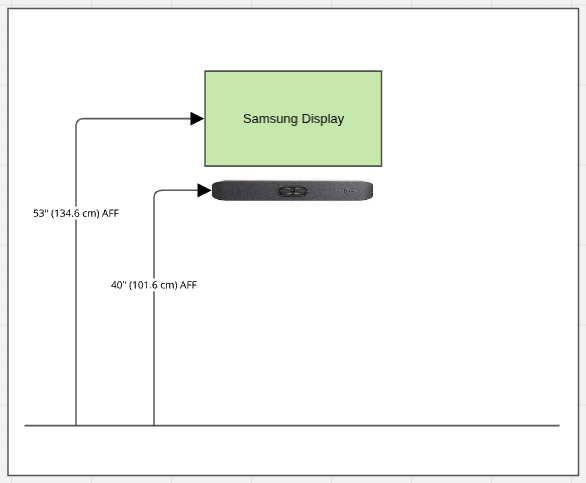

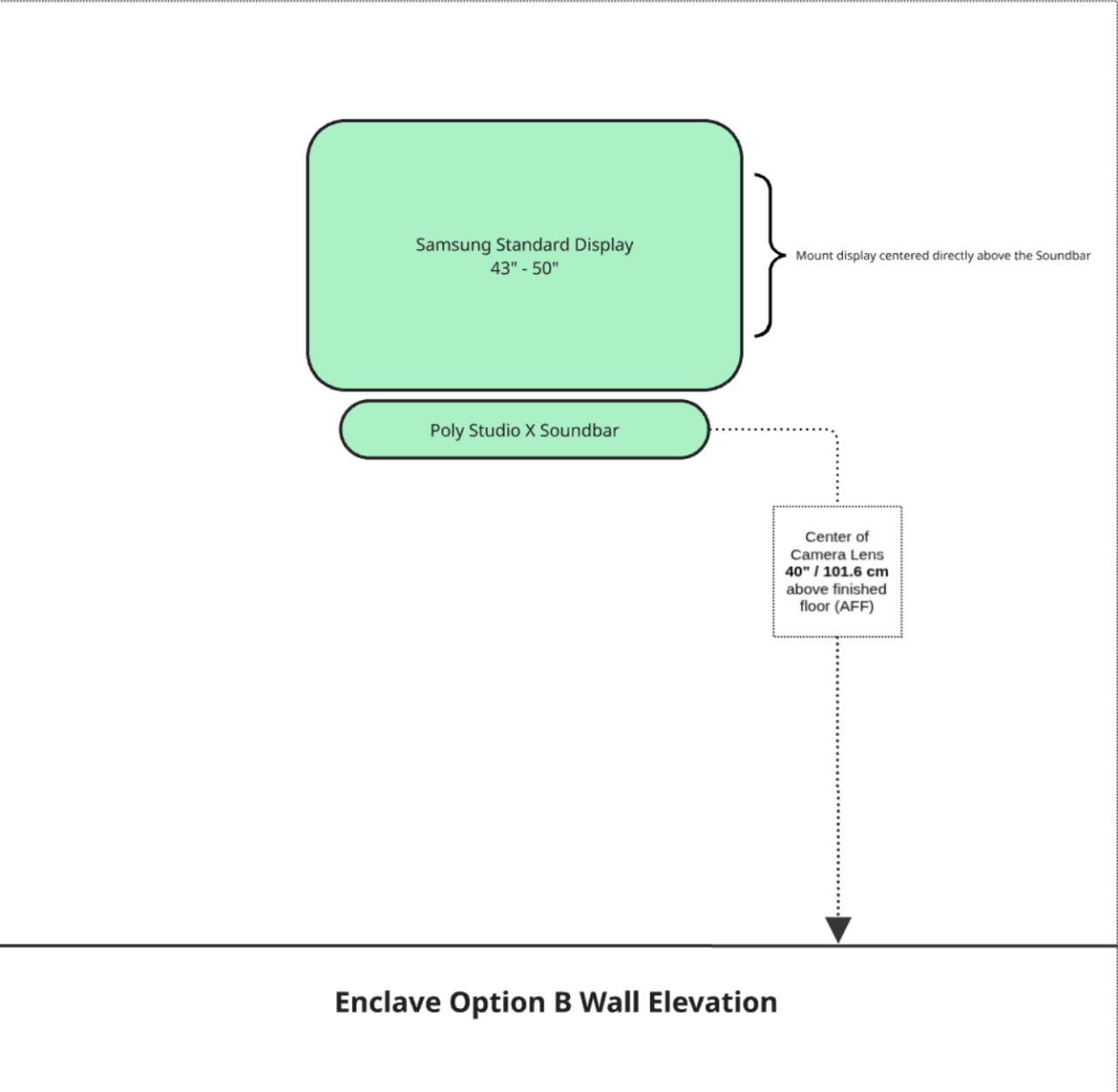

- Aproximate AV Elevation Heights
- Center of Chief box: 50" (127cm)
- Aproximate AV Elevation Heights
- If wall plates are used, mount center of wall plates 6” (15cm) below the published center of the Chief Box to ensure access for support is maintained.
- If using the Chief Sliding Panel, center the panel at the published center of the Chief Box. Mount the panel opposite any glass wall, as appropriate, to obscure the view of the panel.
- If using Chief Sliding Panel ensure data and power cables are routed properly and allow for the panel to slide completely out for support.

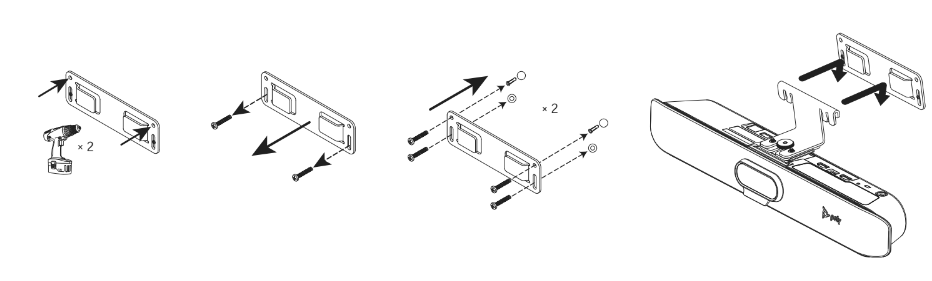

X32 Below the display Wall Mount (Inverted Mount Option - 875L6AA)

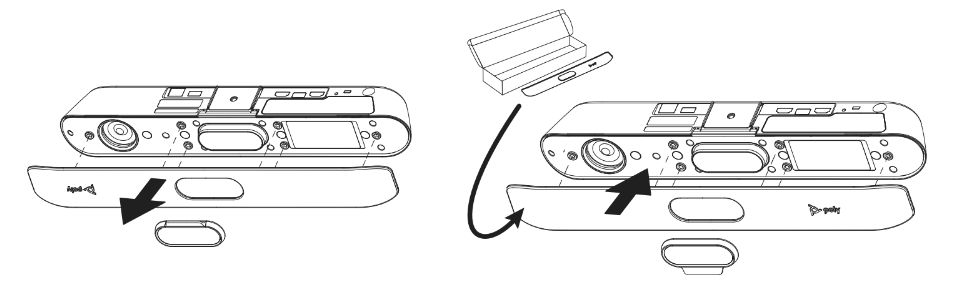

1. Inverted Front Panel needs to be replaced
2. X32 Mount with input/output ports towards the display, all the cables between the X32 and the back of the display should be hidden and protected with cable snake.
Signage and wayfinding
Specific signage and wayfinding information for this space type is coming soon. Please refer to our Signage and wayfinding and Design and delivery resources pages for more general information.
Resource links
Public resources
IT internal resources
- Poly Studio X Configuration Guide (GMNA/Partner Mode/Poly LENS) (authentication required)
- Logi MeetUp2 Configuration Guide (authentication required)
- Samsung Display Configuration Guide (authentication required)
- Display Recommended Sizing and Viewing Distances (authentication required)
